Kate Wells: From conception to creation

Kate Wells: From conception to creation

You might have seen dissolvable support fabric for use with embroidery, but wondered about how best to use it. Kate Wells uses this type of fabric along with machine embroidery to make absolutely stunning fine lace works.

Her Gold Series was constructed using a Singer ‘Irish’ Industrial machine. Her work At Your Feet, a rippling golden roll of lace festooned with a design of pebbles, leaves and daisies, was made after a barefoot walk in the garden. Her design had been inspired by the delicate works of medieval goldsmiths and jewellers as well as sampling explorations, testing out metallic threads and dissolvable fabric. Once she had finished the complex, inter-linked stitch work she took the plunge, holding her breath and dissolving the support fabric away, leaving the embroidered work as a delicate self-supporting fabric roll. It sounds like a scary moment!

Kate’s work is held in public and private collections including The Museum of Modern Art in Kyoto, Japan, and The Diana Springall Embroidery Collection. She has been a regular exhibitor at Art in Action, Waterperry House since 1984, and was a Textiles selector at Art in Action 2012-2016. Recently her work has been featured in Embroidery Magazine (‘The alchemy of thread’, March 2019).

In this article, discover how Kate developed her work At Your Feet, from gathering reference materials and creating samples. You’ll also learn more about the construction process for this beautiful roll of intricate lace work.

Name of piece: At Your Feet
Year of piece: 2013
Techniques and materials used: 220cm x 20cm, Machine embroidered lace. Materials: Metallic thread on dissolvable fabric.

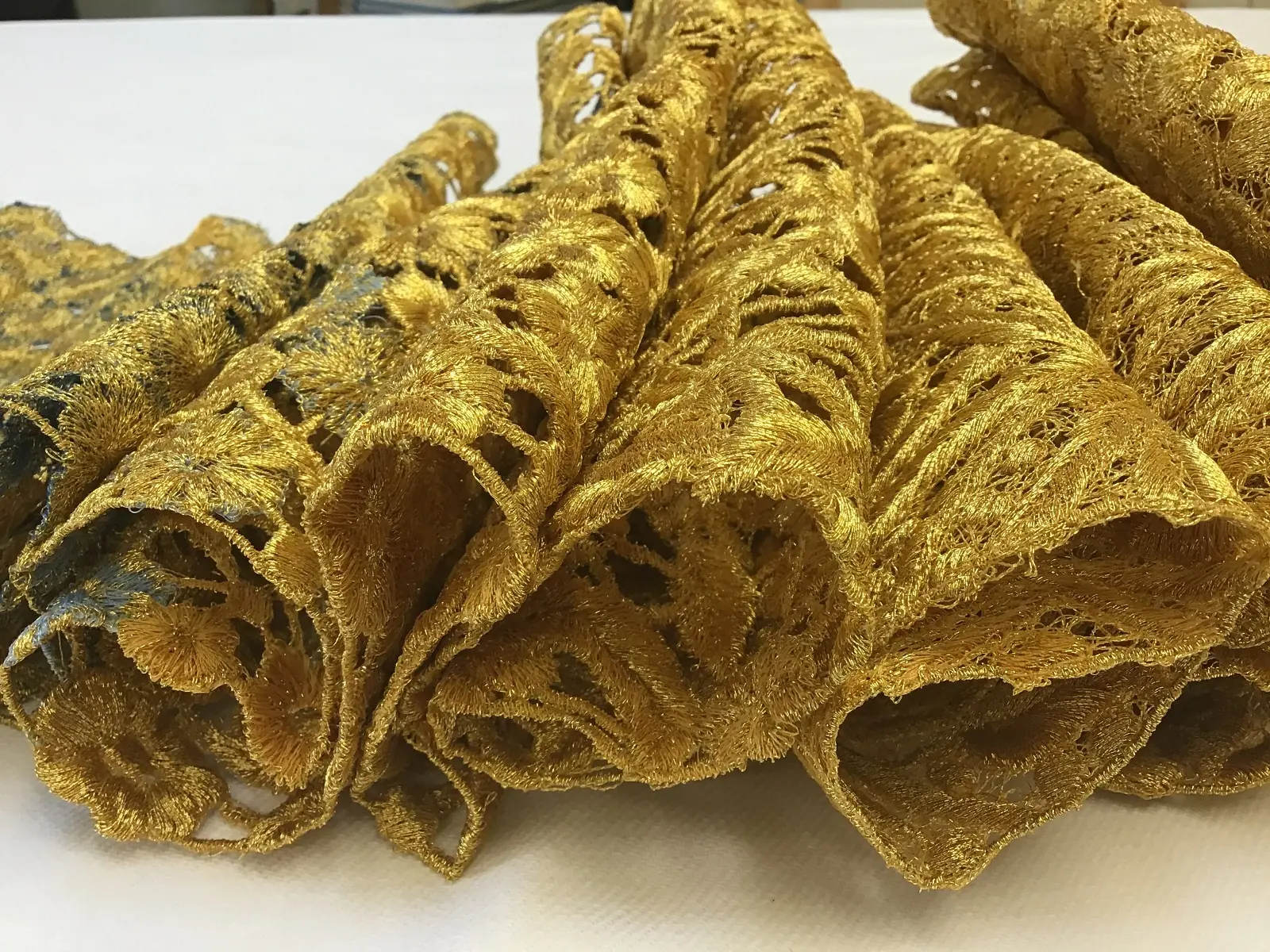

Kate Wells: At Your Feet
Kate Wells: At Your Feet

An interlocking jigsaw of threads

TextileArtist.org: How did the idea for the piece come about? What was your inspiration?

Kate Wells: Although this work hasn’t been a major exhibition piece, it has been pivotal to me. Other works have grown out of it. In a way it’s a large sample and making it opened up a new conversation between the maker and the made.

I’d always made landscape images in embroidery. These were really intensely stitched and often large-scale, each one a huge commitment once started.

I like to have a purpose or meaning behind what I embark on and on a workshop week with fellow artists I began to play with paper in response to our theme, instead of drawing. I had that ‘Aha’ moment and I was soon making patterns and open grids, like ‘paper lace’. Repetitions and textures that hadn’t previously been part of my usual way of working.

Once back home, I began to sample with metallic threads on dissolvable fabric. It was liberating to explore without having an end composition. Out of this work, a mini-series of small samples developed which I called ‘Fragments of Splendour’ (from the Bhagavad Gita scripture).

I then found myself shifting to research jewellery, goldsmith work and lace-making.

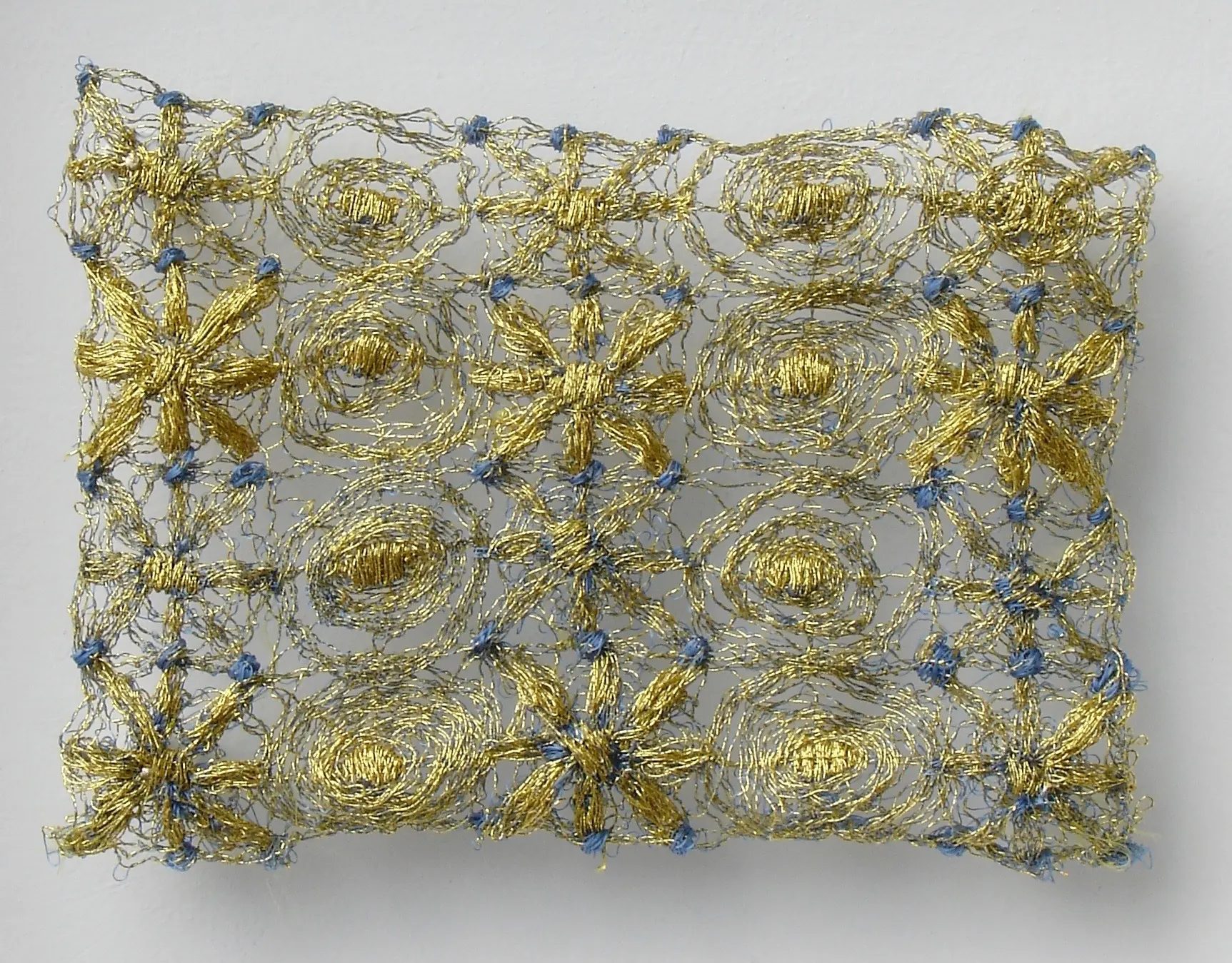

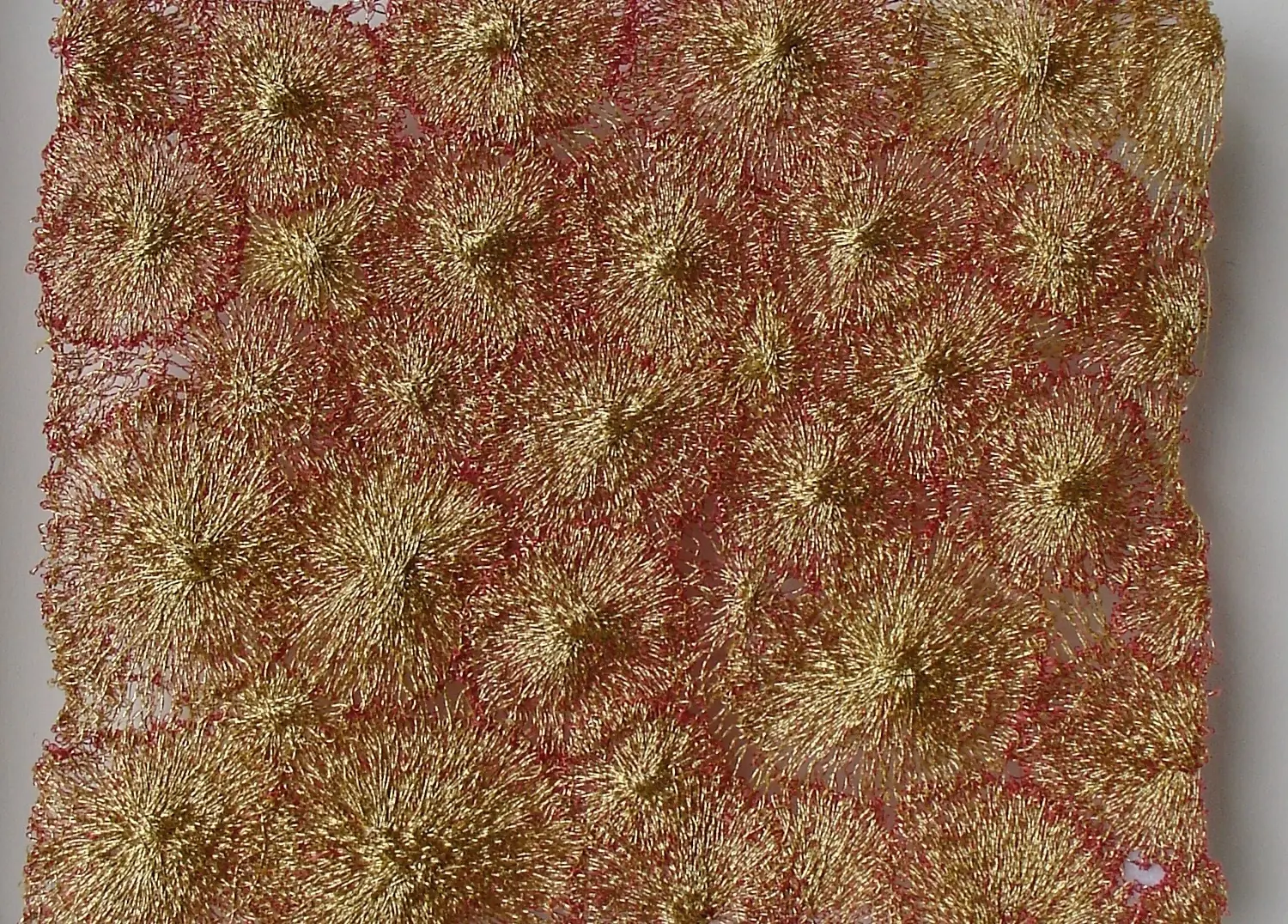

Kate Wells: Fragments of Splendour - antique filigree sample
Kate Wells: Fragments of Splendour – antique filigree sample

What research did you do before you started to make?

Until this project, my lifelong habit of sketching in museums and observing the details of decorative work had never found its way into the studio. I began to use a sketchbook to develop my ideas. In fact the next liberating step for me was to have themed sketchbooks with nice, heavy paper and a square format. My books gradually began to bulge with samples and experiments.

For the first time the possibilities came rolling along one after another. Each sample suggested the next direction to take, by questioning ‘What if….?’

I worked my way through different metallic threads and under-threads until I found a selection that worked reliably without too much fraying in the needle.

Kate Wells: Fragments of Splendour - medieval gilded sample
Kate Wells: Fragments of Splendour – medieval gilded sample

Walking barefoot in the grass

Was there any other preparatory work?

In 2008, at Art in Action, I had the privilege to meet a master Indian embroiderer. His double-sided embroidered pashmina entitled ‘The Divine Garden’ had won the Best of the Best award, voted by peers at the show. As I sat on the floor while he showed me his embroidery technique, I knew deep within that this was an important and inspirational cross-over moment. I had voted for his work and he had voted for mine. To this day, I regret not buying his pashmina. I should have paid homage to this pivotal moment.

Kate Wells: Gravel and leaves - inspiration photograph
Kate Wells: Gravel and leaves – inspiration photograph

The preparation for this piece was a simple walk in a divine garden, across the grass, barefoot and early in the morning. ‘At Your Feet’ was conceived. I took some photographs as references. Pebbles, gravel, leaves and feathers on the path, the grass and the daisies.

As sampling was now a more familiar process, I started to experiment. I knew that this piece had to be gold, like the morning atmosphere, and that it should be long and narrow like the width of a single footprint. I had seen rolls of Italian and French lace in the Burrell Collection (Glasgow) a few years before and this image had stayed powerfully with me. I wanted to construct my own roll of lace.

Kate Wells: Daisies in the path - inspiration photograph
Kate Wells: Daisies in the path – inspiration photograph

What materials were used in the creation of the piece? How did you select them? Where did you source them?

Using hot-water dissolvable fabric from Whaleys of Bradford and Superior Metallics Thread from Barnyarns I set about sampling each surface.

I work on an old Irish industrial machine which is such a joy to use. The swing is variable, using a knee lever to widen or reduce the width of the stitch hands-free (anything from straight stitch to 12mm and back). I sampled the pebbles by stitching over and over to make a pad of dense thread.

Making stitched lace has to follow the traditional rules of lace-making, so I first stitched a grid to support the free embroidery design. This stopped the whole piece falling apart after dissolving the support fabric.

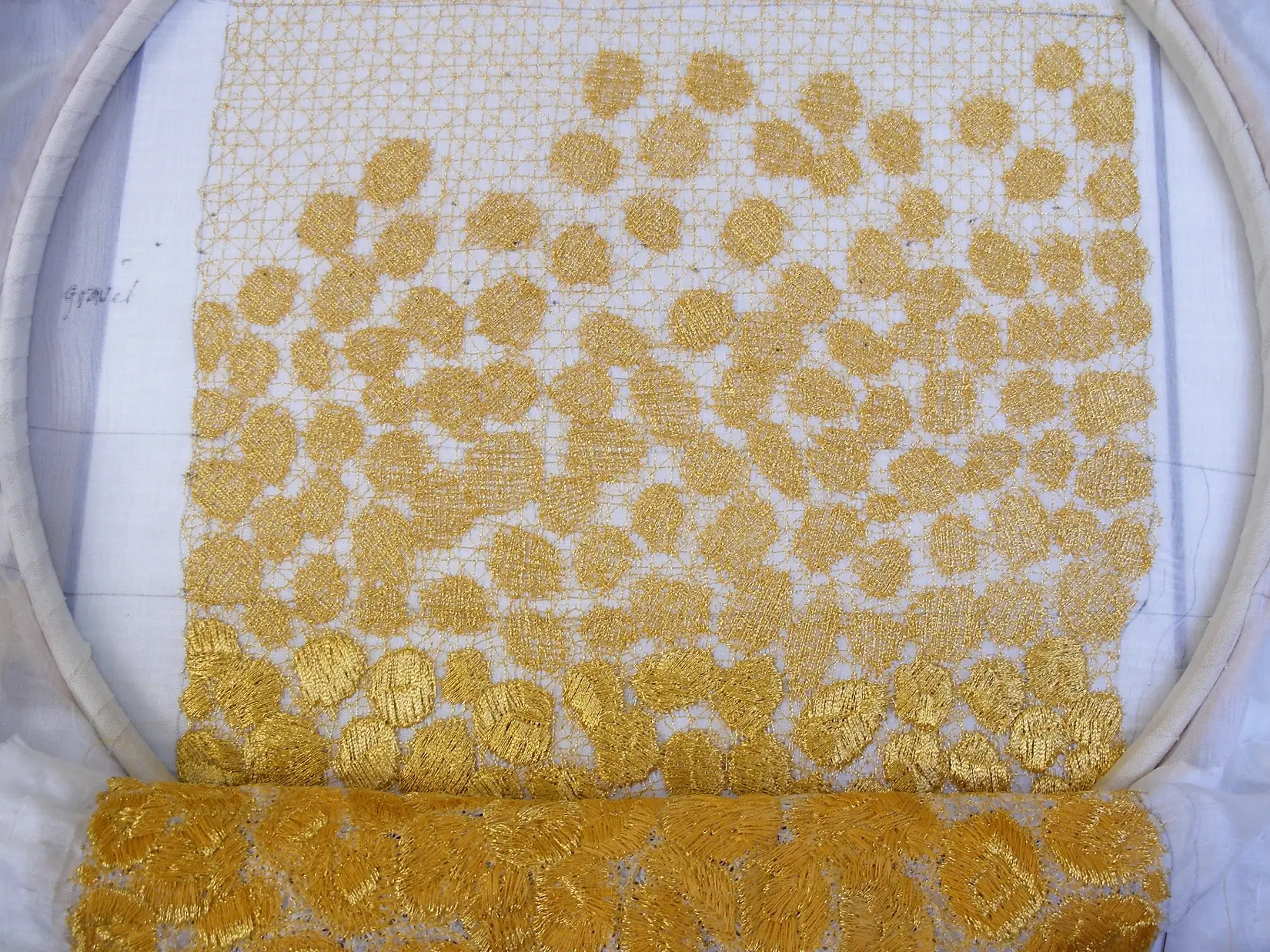

Kate Wells: 'Gravel' spots sampled on dissolvable fabric in a 12" hoop
Kate Wells: ‘Gravel’ spots sampled on dissolvable fabric in a 12″ hoop

What equipment did you use in the creation of the piece and how was it used?

I used a 12” circular embroidery hoop. Knowing that the support fabric was temporary, I outlined the design directly onto the fabric using a fine marker and wrote measurements and memos along the way. The embroidered fabric was rolled and pinned to avoid it dragging and snagging as the work grew.

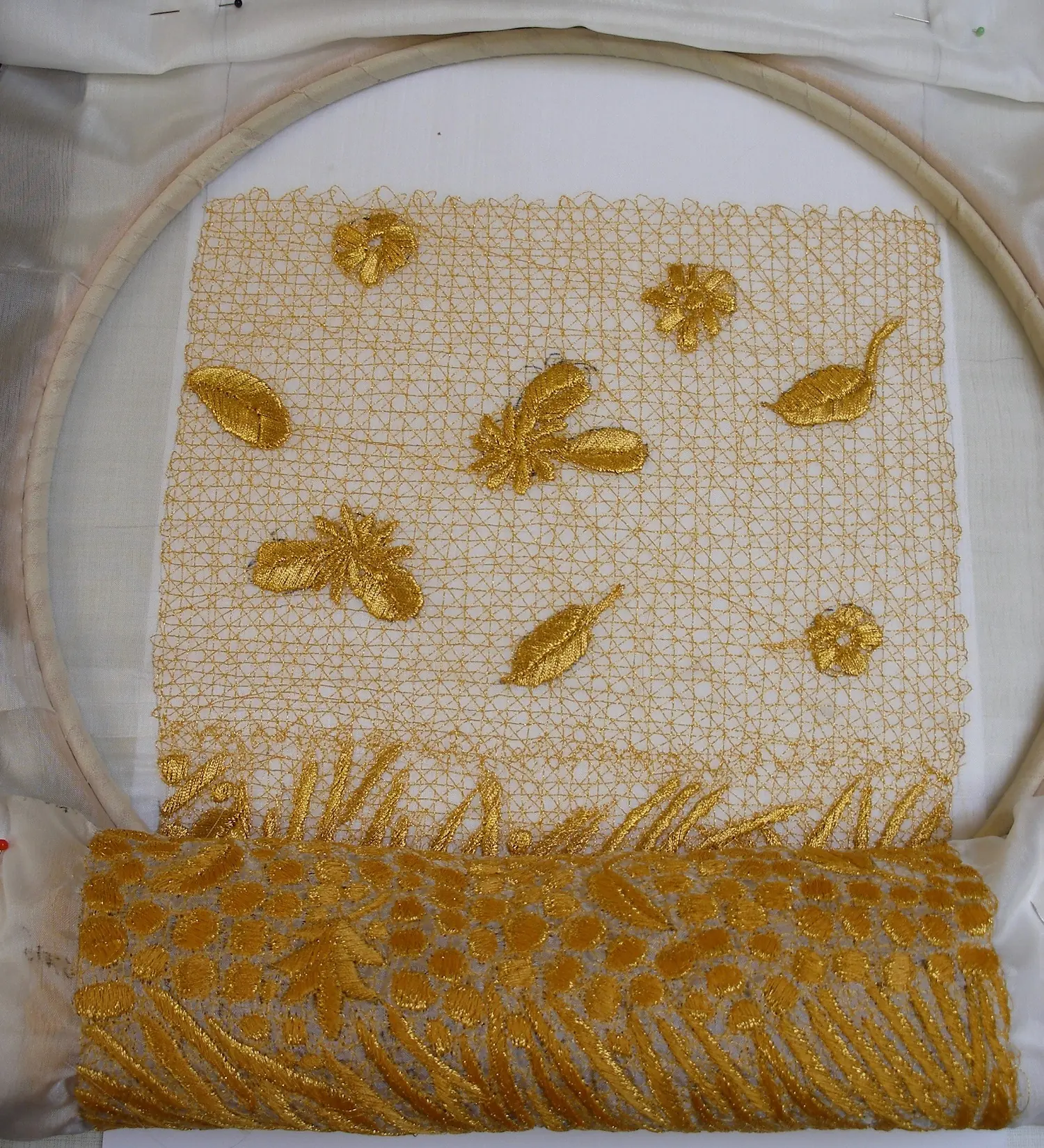

Kate Wells: Leaves and flowers stitched onto an embroidered grid on dissolvable fabric, showing the roll of stitched cloth below.Kate Wells: Leaves and flowers stitched onto an embroidered grid on dissolvable fabric, showing the roll of stitched cloth below.
Kate Wells: Leaves and flowers stitched onto an embroidered grid on dissolvable fabric, showing the roll of stitched cloth below.

The Great Dissolve

Take us through the creation of the piece stage by stage

The roll was so long that it became really cumbersome so I started to work on a second strip at half-way, planning to join them together later.

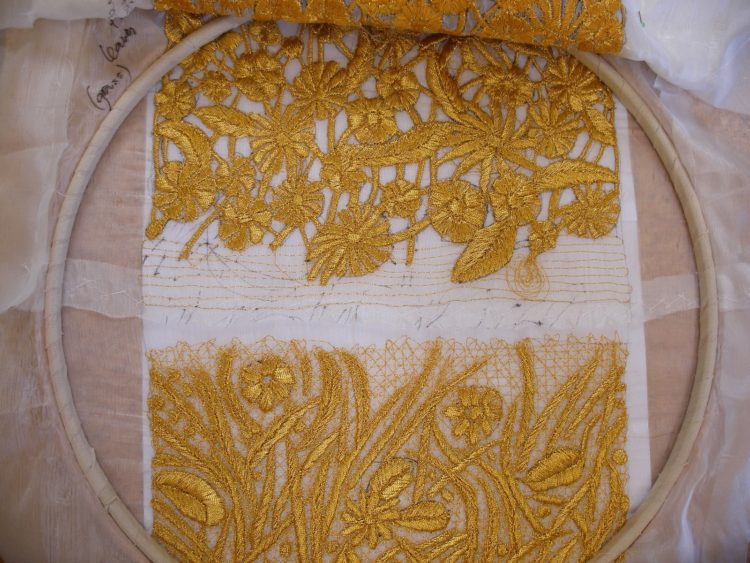

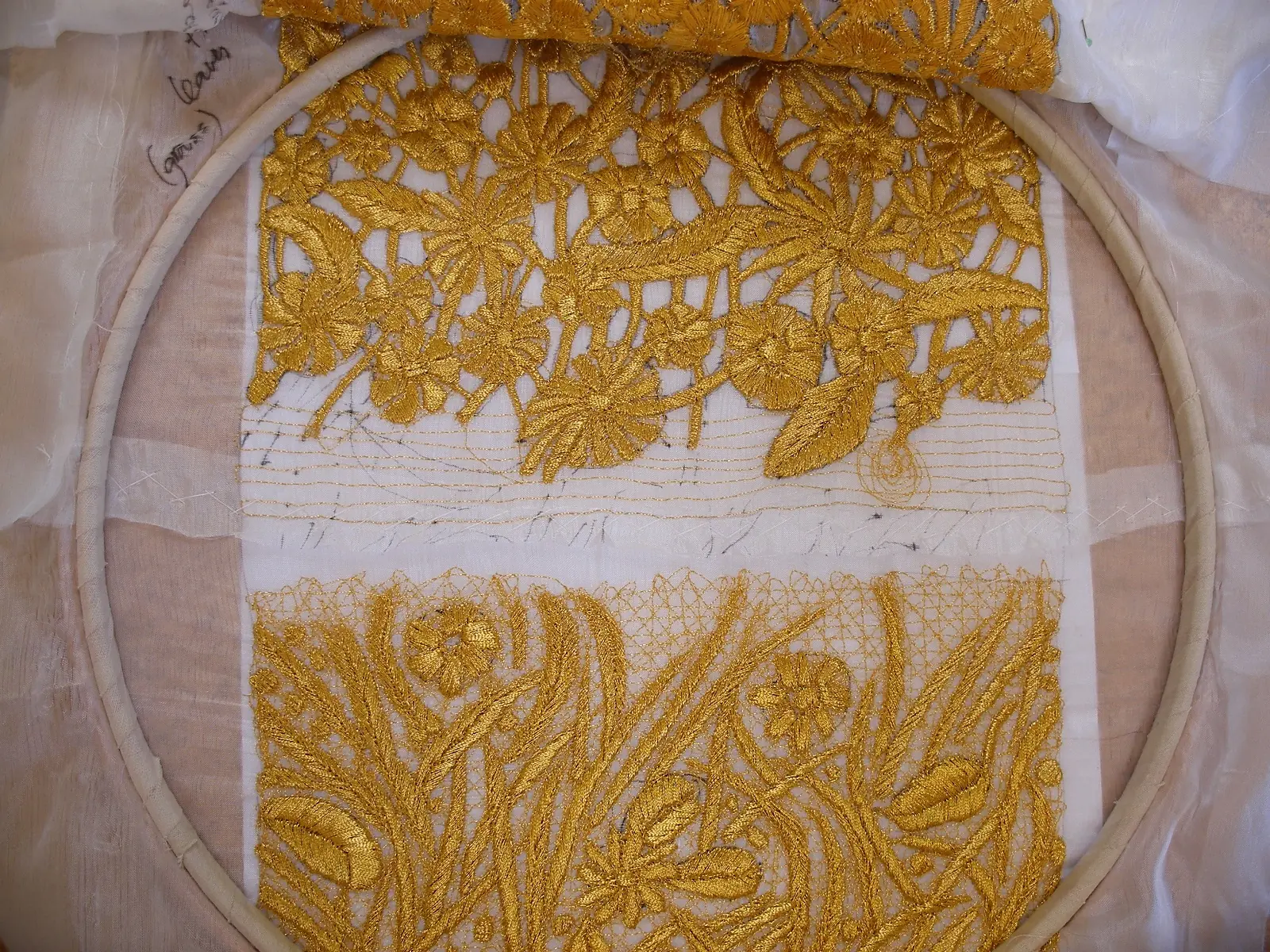

Kate Wells: Joining two sections
Kate Wells: Joining two sections

In the bottom half, I’d been making a grid before stitching. As I was now embroidering flowers I changed my method to create something more like Guipure lace, stitching and wrapping bars between the petal shapes. This had to be sampled first. As I worked, a collection of samples was developing nicely on my wall alongside the reference images.

The sky section needed to balance the richness of the walk section. I chose a fine ultramarine blue thread (Ultrafyne from Restore Products) for the bobbin and loosened the lower tension until there was a shimmer of colour in all the top stitches. This became ‘starburst’ into which I left spaces to stitch plain gold flowers appearing as stars in the blue sky.

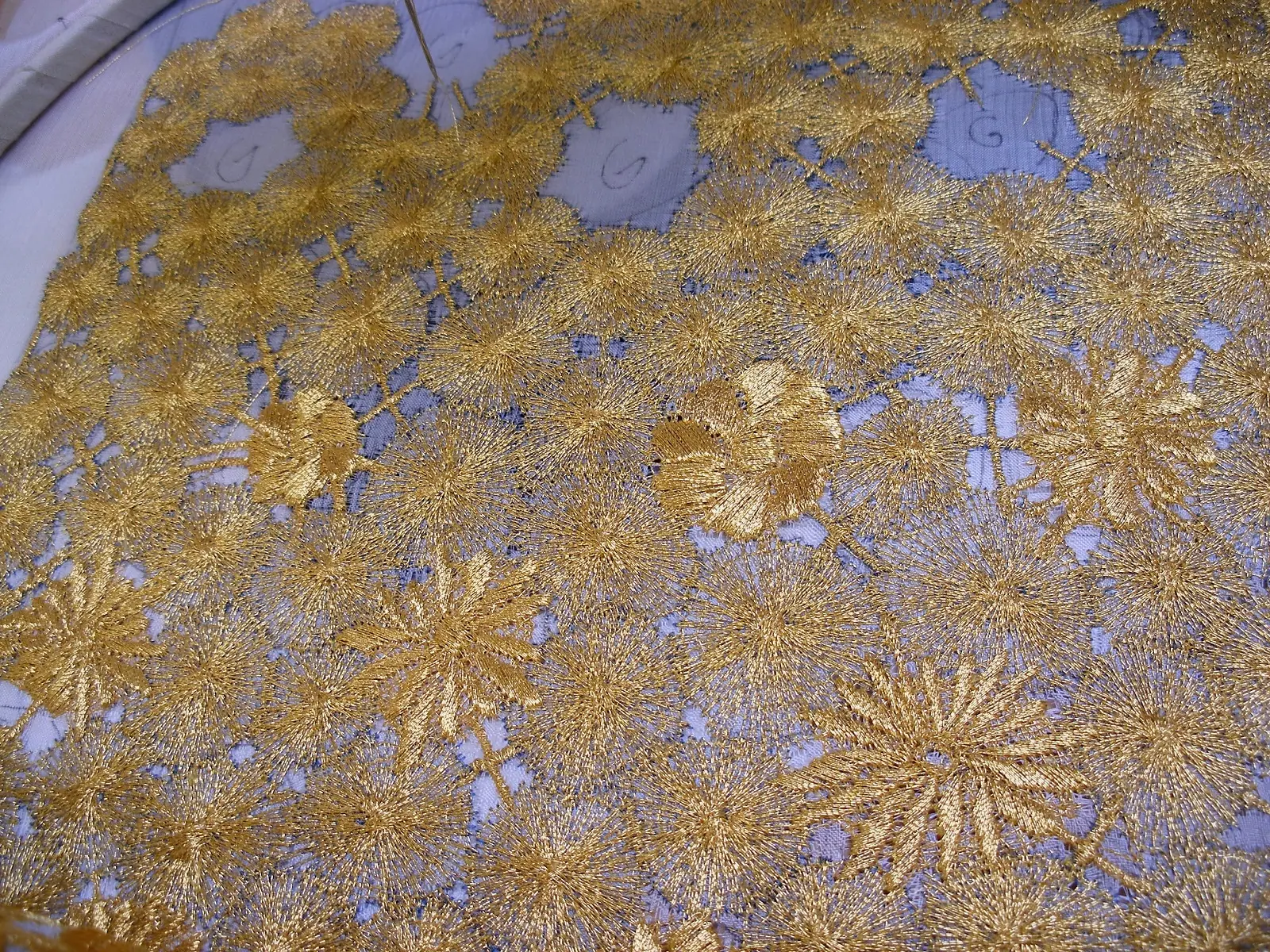

Kate Wells: 'Starburst' details with gold flowers inlaid in spaces between
Kate Wells: ‘Starburst’ details with gold flowers inlaid in spaces between

Both sections were then joined, blending the top and bottom embroidery sections together.

Once I’d thoroughly checked over for loose links in all areas, the piece was ready for the hot water pan and the ‘Great Dissolve’. The point of no return! After three minutes of gentle movement in very hot water, the whole fabric was lifted out and rinsed in cold running water, checking to make sure there were no traces of dissolvable gel left in the threads.

I laid an old soft flannelette sheet on the studio floor to stretch and block the whole cloth, gradually teasing and pinning the edges out to fill the template of stretched threads and keep a good alignment. Then it was left overnight.

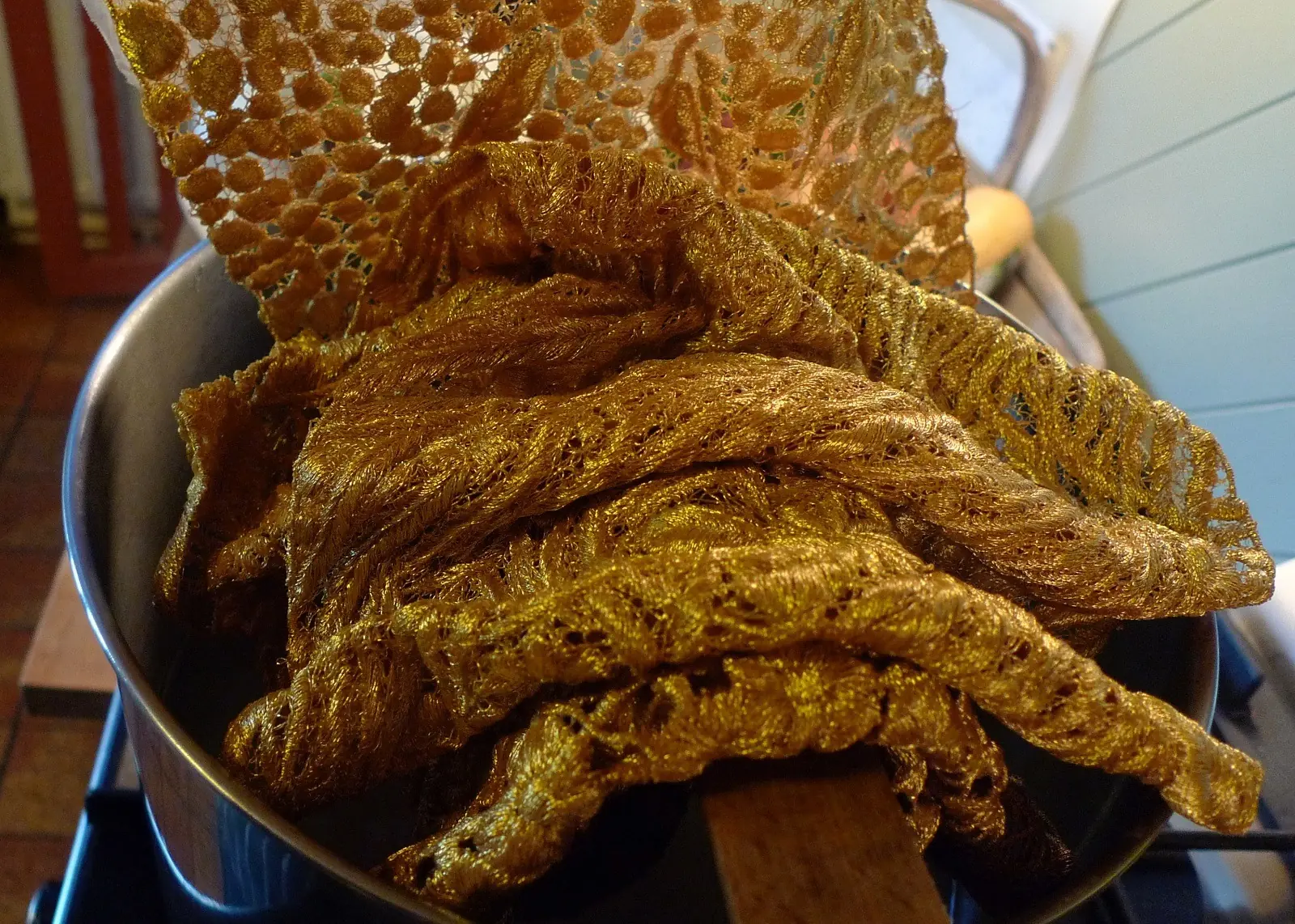

Kate Wells: Immersing the finished embroidery into boiling water
Kate Wells: Immersing the finished embroidery into boiling water

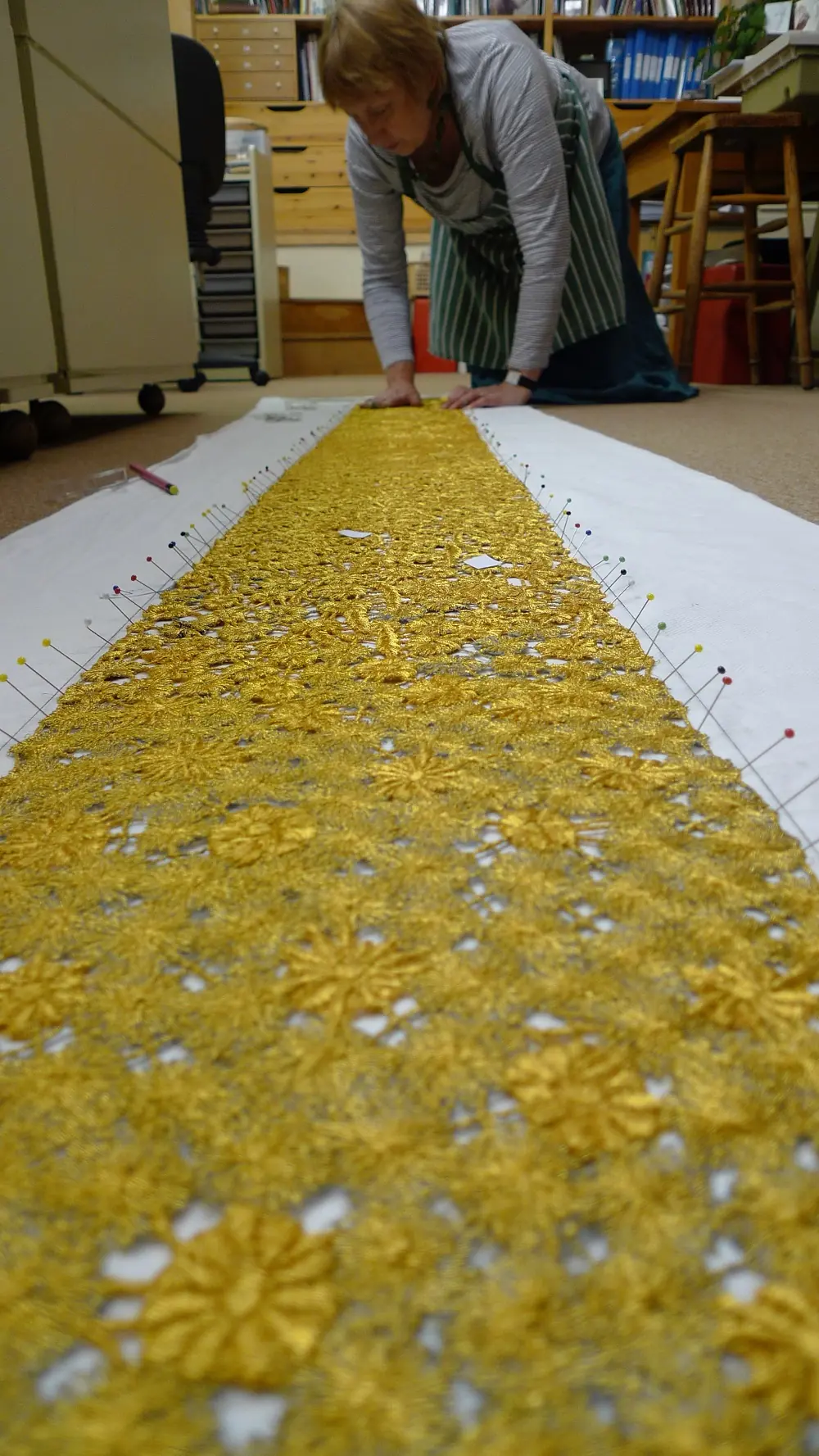

Kate Wells: Blocking the entire strip of lace on the studio floor
Kate Wells: Blocking the entire strip of lace on the studio floor

What journey has the piece been on since its creation?

This beautiful gold cloth was exhibited at Art in Action (2013). It currently remains rolled up and shown when I have open studios or give illustrated talks. It has inspired more work and samples including a ‘Dip Your Mind in Gold’ (2014) and ‘Gold Field (2016).

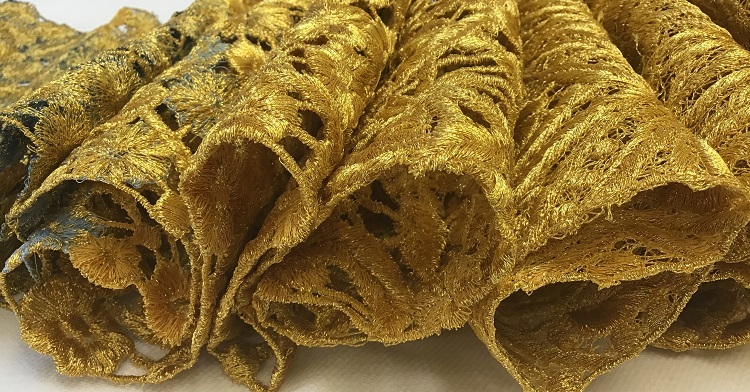

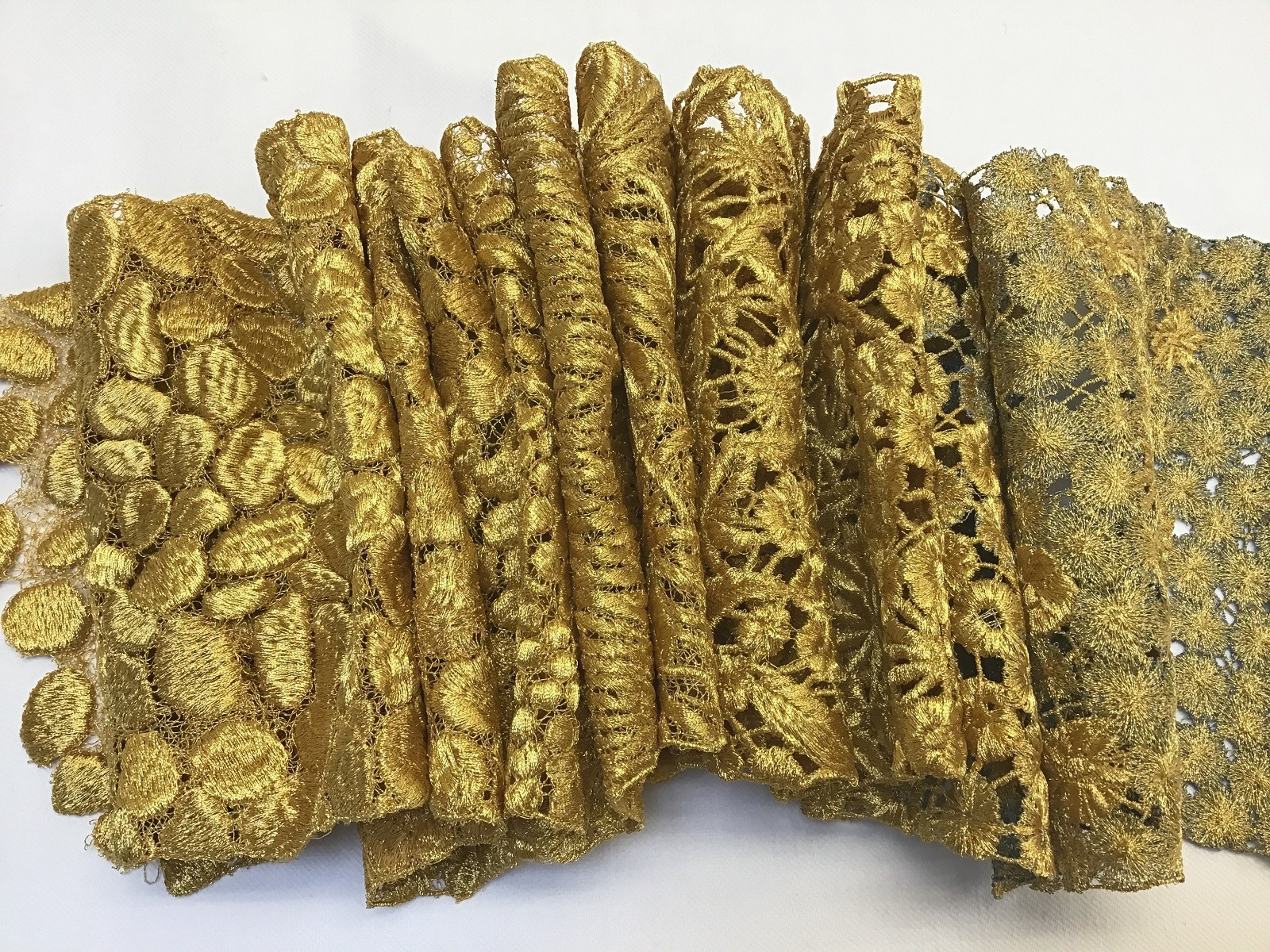

Kate Wells: At Your Feet - a lovely, strong and glowing lace cloth
Kate Wells: At Your Feet – a lovely, strong and glowing lace cloth

For more information visit www.katewellsartist.co.uk

Have you ever used dissolvable fabric as a support for your embroidery work? Let us know your experiences using the buttons below.
